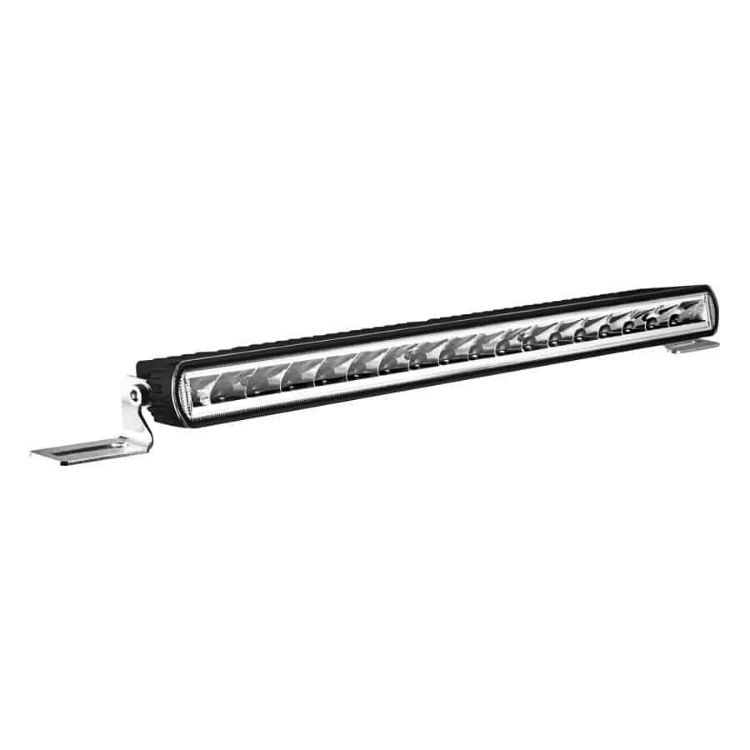

45 Watt 21 Inch 3900 Lumens LED Light Bar Osram LEDriving® Slim Lightbar SX500-SP

Rated 0 out of 5
(be the first to review)


Packaging includes:
• (1) LED Light Bar with bracket
• Mounting Hardware
• Mounting Instructions

Durable LED power for improved road safety
Intelligent lighting technology meets a long lifespan with the LEDriving Lightbar SX500-SP search light. With a lifespan of 5000 hours, the LED auxiliary light with certified approval provides increased and long-lasting safety on the road.

With an illuminance of one lux, the beam from the LED auxiliary light can reach up to 360 meters with a beam angle of eight degrees. The 18 high-performance LEDs produce a brightness that is especially beneficial for drivers on unlit streets and in difficult visibility conditions.

The intelligent reflector design of the LED bar for automobiles provides very high optical efficiency with uniform light distribution and reduced glare for oncoming traffic. Reduced glare in particular counts as another important aspect of road safety.

But the light output from the 3900 lumen LED high beam isn’t the only feature that gives the light its appeal: It also enhances the off-road look of the vehicle.

Durable LED working light for safe driving pleasure
Daily use demands quite a bit from the material used. The LED auxiliary lights are therefore equipped with a long-wearing polycarbonate lens. The search light also works in extreme air temperatures ranging from -30 to 60 degrees Celsius.
An integrated driver and thermal management system regulates heat generation during operation and protects the 18 high-performance LEDs from possible overheating.

Over and under voltage protection automatically breaks the circuit when power exceeds the predetermined current for a specified amount of time. This practical function provides added protection from operational damage.

The LEDriving Lightbar SX500-SP LED bar is suitable for cars, 4×4 and off-road vehicles and for utility and industrial vehicles. Thanks to compact mounting dimensions, even agricultural vehicles can benefit from the intense brightness of the LED auxiliary light.

Product information
Application (Category and Product specific)
Additional high beam application

Electrical data
Nominal voltage
12/24 V

Nominal wattage
45 W

Test voltage
13.5 V

Photometrical data
Luminous flux
3900 lm

Color temperature
6000 K

Light distance at 1lx
370 m

Dimensions & weight
62.0 mm

38.0 mm

556.0 mm

Product weight
1100.00 g

Lifespan Tc
5000 h

5 years

Additional product data
Connector to lamp
DT Connector


Certificates & standards
ECE R10, R112

Approval marks – approval
E4 approval

Type of protection

Logistical data
Commodity code

5 in stock

Share this Product


Robust LED auxiliary light with powerful light output

Compact housing design – Compact mounting dimensions enables a wide range of possible applications

Lighting distance up to 370 meters – Increased far field illumination

Spot Beam – Highly concentrated light beam

Durable LED power for improved road safety
Durable LED working light for safe driving pleasure
